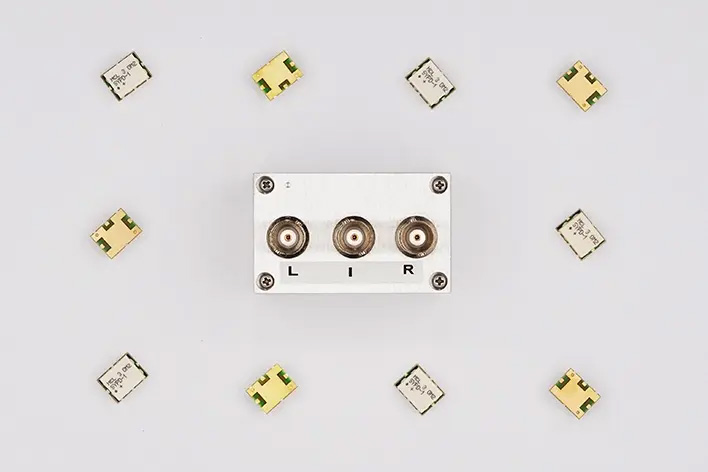

| Model Number | Case Style | RF Freq. Low (MHz) | RF Freq. Hi (MHz) | RF Power In (dBm) | Scale Factor (mV/deg.) | DC Out Impedance (Ω) | RF1 - RF2 Isolation (dB) Min. | Output Polarity with RF in phase | DC Output (mV) Typ. | DC Offset (mV) Typ. | Figure of Merit M, Typ. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SYPD-1+ | TTT167 | 1 | 100 | 7 | 8 | 500 | 40 | neg. | 1000 | 0.2 | 143 |
| SYPD-2+ | TTT167 | 10 | 200 | 7 | 8 | 500 | 40 | neg. | 1000 | 0.3 | 143 |
| SYPD-52W+ | TTT167 | 300 | 650 | 7 | 8 | 500 | 28 | neg. | 900 | 0.9 | 129 |
Designer Kits
| Model Number | Models Included in Kit | Quantity per Model | Total Quantity of Units |
|---|---|---|---|
| K-PD | 1 | MPD-1+, MPD-2+, MPD-21+, SYPD-1, SYPD-2 | 5 |
Phase Detectors, Coaxial, High Output (1000 mV DC), 1 to 100 MHz
| Model Number | Case Style | RF Freq. Low (MHz) | RF Freq. Hi (MHz) | RF Power In (dBm) | Scale Factor (mV/deg.) | DC Out Impedance (Ω) | RF1 - RF2 Isolation (dB) Min. | Output Polarity with RF in phase | DC Output (mV) Typ. | DC Offset (mV) Typ. | Figure of Merit M, Typ. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ZRPD-1+ | M22 | 1 | 100 | 7 | 8 | 500 | 40 | neg. | 1000 | 0.2 | 143 |
Phase Detectors, Plug-In, High Output (1000 mV DC), 1 to 400 MHz
| Model Number | Case Style | RF Freq. Low (MHz) | RF Freq. Hi (MHz) | RF Power In (dBm) | Scale Factor (mV/deg.) | DC Out Impedance (Ω) | RF1 - RF2 Isolation (dB) Min. | Output Polarity with RF in phase | DC Output (mV) Typ. | DC Offset (mV) Typ. | Figure of Merit M, Typ. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MPD-1+ | A11 | 1 | 100 | 7 | 8 | 500 | 40 | neg. | 1000 | 0.2 | 143 |
| RPD-1+ | A01 | 1 | 100 | 7 | 8 | 500 | 40 | neg. | 1000 | 0.2 | 143 |
| RPD-2+ | A0 | 5 | 150 | 7 | 8 | 500 | 40 | neg. | 1000 | 0.3 | 143 |
