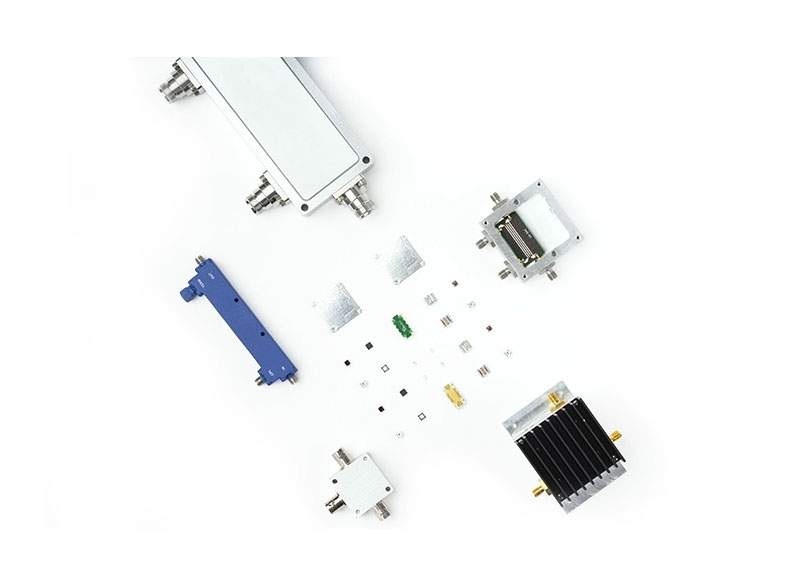

Couplers

13918167735

Model Number	F Low (MHz)	F High (MHz)	Coupling (dB)	Mainline Loss (dB) Typ.	Directivity (dB) Typ.	VSWR (:1) Typ.	Power Input Max.(W)	Type	Construction	Feature	Case Style
ADC-6-1R+	5	200	6.2	1.7	25	1.33	0.5	Directional	Transformer	-	CD542
ADC-6-10-75+	20	1000	6.6	2.1	15	1.3	0.5	Directional	Transformer	-	CD542
ADC-6-13+	200	1300	6.3	1.8	17	1.3	0.5	Directional	Transformer	-	CD542
ADC-8-4-75+	5	1250	7.9	1.6	17	1.2	1	Directional	Transformer	-	CD542
ADC-10-1R+	5	900	10.5	0.8	30	1.3	1	Directional	Transformer	-	CD542
ADC-10-4+	5	1000	10.5	0.8	40	1.2	1	Directional	Transformer	-	CD542
ADC-15-4+	5	1000	15.5	0.6	24	1.2	1	Directional	Transformer	-	CD542
ADC-17-122-75+	5	1250	17	0.8	12	1.15	1	Directional	Transformer	-	CD542
ADC-20-4+	5	1000	20	0.5	21	1.1	1	Directional	Transformer	-	CD542
ADC-20-4-75+	5	1250	19.7	0.5	23	1.15	1	Directional	Transformer	-	CD542
ADC-20-4-75R+	40	1000	20.5	0.6	20	1.1	1	Directional	Transformer	-	CD636
ADC-20-12+	100	1200	20	0.5	26	1.17	1	Directional	Transformer	-	CD542
ADC-20-13+	450	1000	19.7	0.2	20	1.2	4	Directional	Transformer	-	CD542
ADC-20-132+	100	1300	20	0.4	22	1.43	4	Directional	Transformer	-	CD542
ADC-25-4-75+	5	1250	25	0.1	25	1.2	1	Directional	Transformer	-	CD636
ADC-26-52+	10	500	26	0.2	25	1.1	5	Directional	Transformer	-	CD636
ADCB-20-82+	1	800	20.2	0.3	24	1.2	1	Bi-Directional	Transformer	-	CD636
BDCA-6-16+	800	1600	6.3	1.6	24	1.05	65	Bi-Directional	LTCC	DC Passthrough	DZ944
BDCA-7-25+	1200	2500	7.1	1.6	22	1.05	35	Bi-Directional	LTCC	DC Passthrough	DZ944
BDCA-10-25+	800	2500	10.1	1	22	1.05	24	Bi-Directional	LTCC	DC Passthrough	SM1L
